TitleMcnex's Driver Monitoring System (DMS) DATE 2023-10-19

DMS (Driver monitoring system)

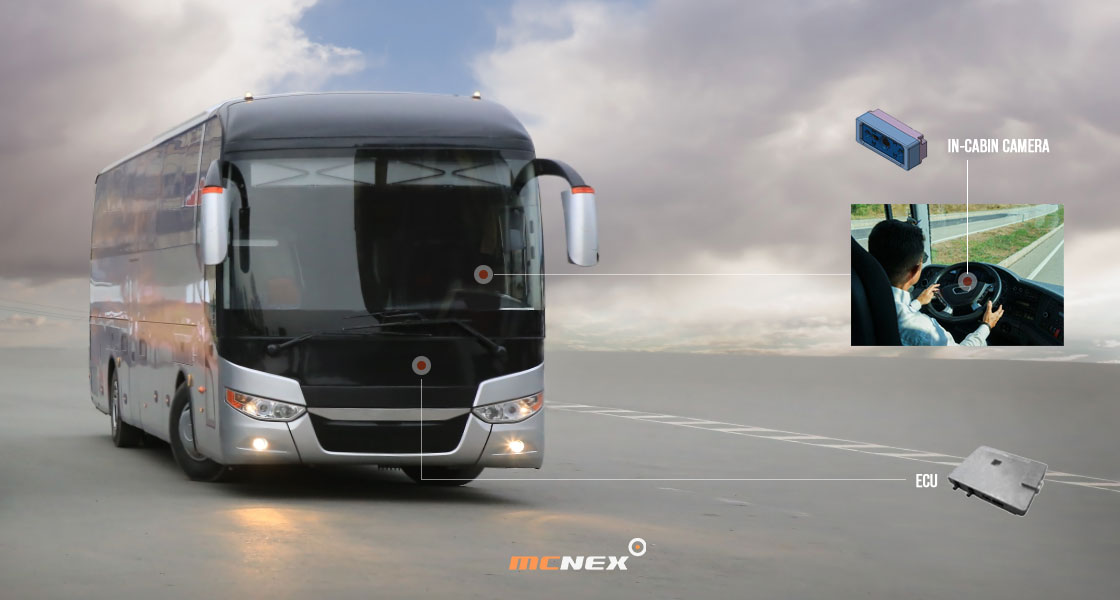

Mcnex's Driver Monitoring System (DMS) uses advanced cameras and sensors to monitor the physical and visual behaviors of the driver. This data is analyzed through algorithms to determine the driver's condition.


Recently, automotive technology has been advancing at an astonishing rate, and as autonomous driving technology progresses, the role of the driver is gradually diminishing. In such situations, the Driver Monitoring System (DMS) is a system that monitors and analyzes the driver's behavior and condition in real time. DMS detects unsafe driving behaviors, decreased attention, drowsiness, etc., and warns the driver, helping reduce the risk of accidents.



Mcnex's Driver Monitoring System (DMS)



1. Utilizing Advanced Cameras and Sensors

Mcnex's DMS employs high-resolution cameras and advanced sensors to precisely capture details such as the driver's facial expressions, eye movements, and head position. This allows the system to detect driver distraction, drowsiness, or other potential hazardous situations.


2. Data Analysis through Algorithms

The captured data is analyzed through MCnex's specialized algorithms. These algorithms evaluate various indicators such as the frequency of the driver's blinking and the speed of head movements to assess the driver's condition, and if necessary, they promptly generate warning notifications.


3. Accident Prevention

The primary objective of the DMS is to detect potential risks during driving in advance and thereby prevent accidents. This system is especially effective at detecting driver fatigue during long-distance and nighttime driving.


4. Integration with Autonomous Driving

The DMS can also be linked with the safety features of autonomous vehicles. For instance, if a decrease in driver attentiveness or drowsiness is detected, the autonomous driving function can be temporarily activated to assist the driver or safely bring the vehicle to a stop.


Mcnex's Driver Monitoring System (DMS) is an innovative technology prioritizing driver safety, and it's anticipated to play a significant role in the future of the automotive industry. The introduction and advancement of such technology give hope for safer roads in the future.



Projected Growth in Demand for the Driver Monitoring System (DMS)


With the growth and advancement of autonomous driving technology, there's an increased risk of driver inattention or drowsiness. In such situations, the Driver Monitoring System plays a crucial role as it continuously monitors the driver's condition, preventing potential dangers in advance.





Increased Consumer Awareness of Safety

As semi-autonomous driving systems become more common in vehicles, there's growing concern about drivers getting distracted by smartphones, tablets, etc., and not paying enough attention to avoidable collisions or accidents. The Driver Monitoring System can alert inattentive drivers, shut down autonomous driving functions, or safely pull the vehicle over to the side of the road.


Strengthening of Safety Standards by Governments and Regulatory Bodies

Many countries are tightening vehicle safety standards, and there's a possibility that the introduction of safety features like DMS will be recommended or made mandatory. Consequently, manufacturers are trending towards equipping their vehicles with such technologies.


Consideration to Mandate the Application of Driver Monitoring Systems in US Vehicles


The United States is contemplating making it mandatory for vehicles to be equipped with a Driver Monitoring System (DMS). The move comes in light of increasing concerns about driver inattention, especially with the advent and spread of autonomous and semi-autonomous driving technologies. DMS is designed to ensure that drivers remain attentive and alert while driving, and its implementation can play a significant role in reducing the number of road accidents caused by distractions or drowsiness.


A bill has been introduced in Congress proposing the allocation of funds for research and development as the initial step towards mandating driver monitoring technology in all new cars sold in the United States.


The "Stay Aware For Everyone (SAFE) Act", which is currently pending in the Senate, funds the Department of Transportation (DOT) to study the impact of distracted driving on accident rates and evaluate the efficacy of driver monitoring systems. The bill also includes provisions to consider regulations for the implementation of driver monitoring systems in new vehicles.


Consumer Reports began awarding extra points to models that combined semi-autonomous driving technology with driver monitoring systems starting from 2022.


The Insurance Institute for Highway Safety (IIHS) announced in January 2022 that they are developing a new evaluation program that assesses safety devices used to ensure that drivers of semi-autonomous vehicles are paying attention to the road.



Driver Monitoring System (DMS) - Basic Principles and Functions





Image Processing & Recognition:

The DMS primarily uses integrated cameras to continuously monitor the driver's face, eyes, and head movements. The visual data captured by these cameras is analyzed through artificial intelligence and image processing algorithms.


Behavior Analysis:

Using the camera and algorithms, the system analyzes the driver's behavior (e.g., frequency of eye blinks, head tilt, direction of the eyes) and determines the driver's state based on this information.


Real-time Feedback:

If a potential hazard is detected, the system immediately provides feedback to the driver. This alert can be in various forms such as sound, a visual warning on the dashboard, or vibrations.


Driver Monitoring System (DMS) for Enhanced Driver Safety and Accident Prevention


The Driver Monitoring System (DMS) warns the driver or activates the vehicle control system to prevent accidents in the following situations:

1. Drowsiness Detection

The DMS analyzes the driver's gaze, blink frequency, head position, etc., to detect drowsiness and issues an alert.


2. Distraction Detection

Using gaze tracking technology, the system detects when a driver is distracted during driving, such as using a smartphone or looking for items inside the car.


3. Head Position and Direction Monitoring

The DMS tracks the position and direction of the driver's head to detect unsafe driving behaviors.


4. Emergency Response

If the system detects an emergency situation (e.g., the driver losing consciousness), it can automatically connect to emergency services or safely bring the vehicle to a stop.


Through cameras, the system continuously monitors changes in the driver's face, such as facial position, eye movement, and eyelid closure. It can also identify regulatory compliance issues such as seatbelt usage, smoking, or phone usage. Combined with advanced driver assistance systems facing outward, the DMS provides forward collision warnings and accident risk detection alerts to help the driver take preventative measures in a timely manner.



Driver Monitoring System (DMS) Use Cases


For drivers frequently engaging in long-duration driving, DMS can be immensely helpful. Particularly during nighttime, the risk of drowsy driving intensifies, emphasizing the necessity of the DMS even more.


Taxi and Cargo Vehicle Drivers

For drivers frequently engaging in long-duration driving, DMS can be immensely helpful. Particularly during nighttime, the risk of drowsy driving intensifies, emphasizing the necessity of the DMS even more.


Autonomous Vehicles

In cases where it's not entirely autonomous driving, the DMS assists in ensuring that the driver remains alert and prepared for any necessary interventions.


While automobile safety technology continues to advance, perfect safety is still not guaranteed. In such scenarios, the DMS plays a crucial role by continually monitoring the driver's condition, significantly reducing the risk of accidents.




The Driver Monitoring System (DMS) owned by MCNEX is established as a key technology for driver safety. The future of the automotive industry will heavily rely on the integration of such advanced technology and artificial intelligence. Through this, we can anticipate a more secure and convenient transportation environment. Research and development of DMS is a significant step for driver safety, and the future of this technology is promising.
