TitleMCNEX - Folded Zoom Actuator Leading the future change in the smartphone market DATE 2024-02-04

MCNEX- Folded Zoom Actuator


Smartphone camera technology is making dazzling advancements every year, and one such innovative technology is the 'Folded Zoom Actuator.' This technology significantly enhances the zoom capabilities of smartphone cameras while overcoming their physical limitations, enabling high-quality zoom functions. Smartphone users are increasingly demanding more advanced camera features, and the Folded Zoom Actuator is positioning itself as a key technology to meet these demands.

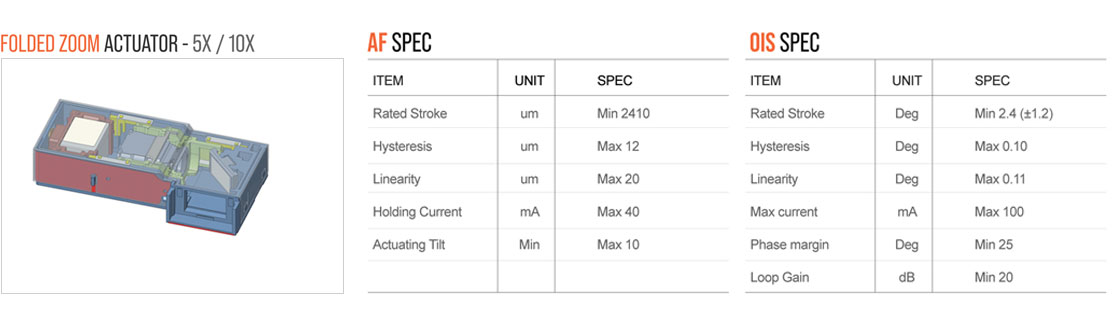

Features of MCNEX Folded Zoom Actuator.


The Folded Zoom Actuator is a mechanism that enables the zoom function of smartphone cameras. The essence of this technology is the use of a 'folded' optical path to reduce the actual size of the lens while providing zoom capabilities. Unlike traditional zoom lenses, which achieve zoom in and zoom out through the physical movement of the lens, the Folded Zoom Actuator refracts the path of light to realize optical zoom in a smaller space. This refraction typically involves several lenses and mirrors, and this configuration is similar to a periscope camera system.

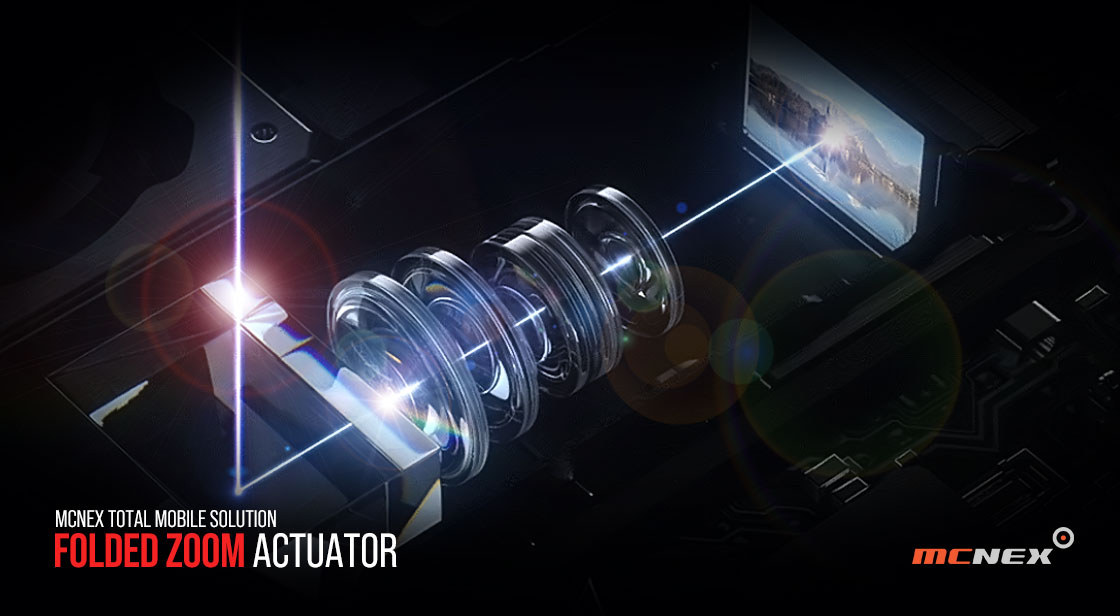

Inside the Folded Zoom Actuator, light enters through the lens and follows an optically 'folded' path to reach the sensor. During this process, the light undergoes one or more reflections or refractions. This allows the physical distance between the lens and the sensor to be shortened, but effectively lengthens the path of light, providing zoom functionality. As a result, users can enjoy high-quality optical zoom functions even in slim smartphones.


The Folded Zoom Actuator enhances the performance and user experience of smartphone cameras through this principle and requires high precision and durability. Additionally, optimizing optical performance and designing to withstand mechanical shocks are important.



Operating Principle of Folded Zoom Actuator.


The Folded Zoom Actuator is an optical zoom mechanism used within the camera modules of electronic devices such as smartphones. The basic principle of this system is similar to a periscope and operates through the following process.


Optical Refraction

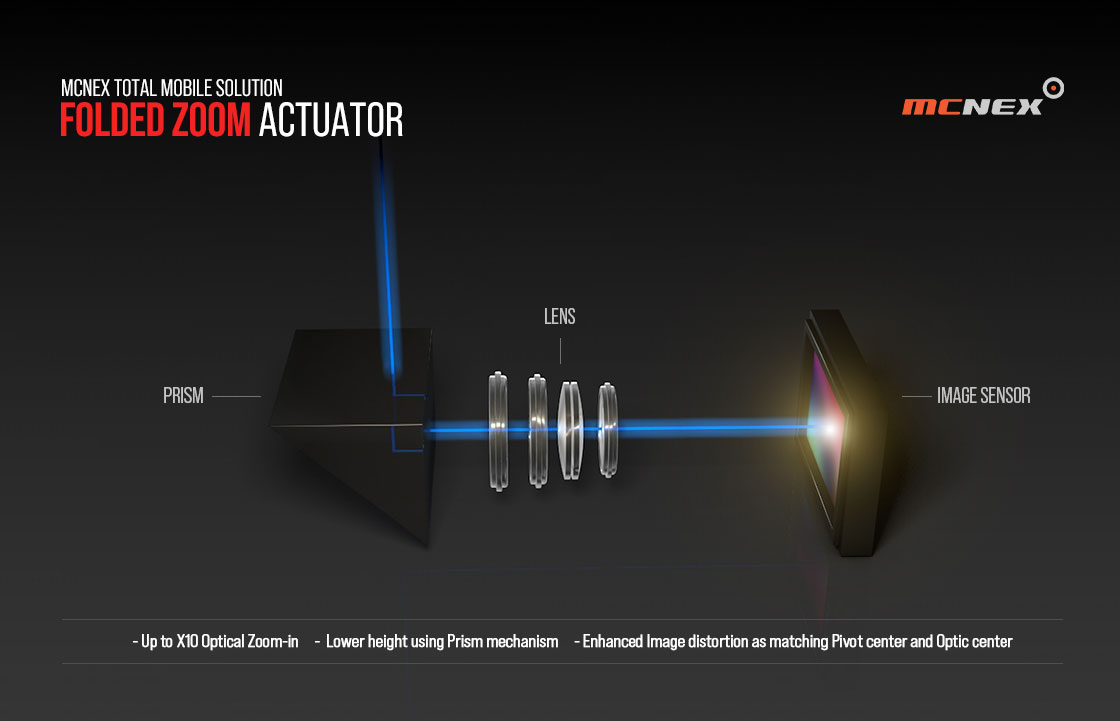

As light passes through the camera lens, the Folded Zoom Actuator uses one or more reflectors (usually mirrors) to 'fold' the path of the light. This optical refraction directs the path of light toward the sensor.


Space Optimization

While traditional optical zoom lenses adjust the path length of light by moving the lens back and forth, the Folded Zoom Actuator extends the light path without moving the lens, thereby realizing the zoom function. This allows the camera module to be thinner and the smartphone design to be slimmer.


Zoom Function

The arrangement of lenses and mirrors inside the Folded Zoom Actuator can be adjusted to precisely set the desired zoom level. This allows for clear shooting of subjects that are far away.


Image Quality

This technology optimizes the path of light to maintain the clarity and quality of the image even when using the zoom. This enables high-quality optical zoom without the image quality loss seen in advanced cameras, now possible on smartphones.


The Folded Zoom Actuator overcomes the limitations of traditional smartphone cameras with these principles, providing users with an improved photographic experience through this innovative technology.





Importance of the Folded Zoom Actuator


This technology overcomes the physical limitations of smartphone cameras and enables high-quality zoom functions. Smartphone users are increasingly demanding more advanced camera features, and the Folded Zoom Actuator is establishing itself as a key technology to meet these demands.


As consumer expectations for smartphone cameras rise, the number of smartphone models adopting Folded Zoom Actuator technology is increasing, particularly among high-end models. This adoption is expected to further enhance the performance of smartphone cameras and also influence smartphone design.


The competition surrounding this technology is providing new opportunities in the smartphone camera market, and innovative camera features are becoming an important factor in consumer purchasing decisions. The Folded Zoom Actuator is expected to have a significant long-term impact on the smartphone market. Especially as high-quality camera functions become a critical buying factor, this technology is expected to be recognized as an essential feature.




MCNEX who leads change of future will take a big step to the world with continuous innovative technology. The invisible core technology of MCNEX is unseen but to turn everyone's imagination into reality,
is always closed to our life every time and everywhere.
