SVM·SRM·DVRS SYSTEM

주행·주차 지원을 위한 SVM·SRM·DVRS 통합 차량 영상 시스템

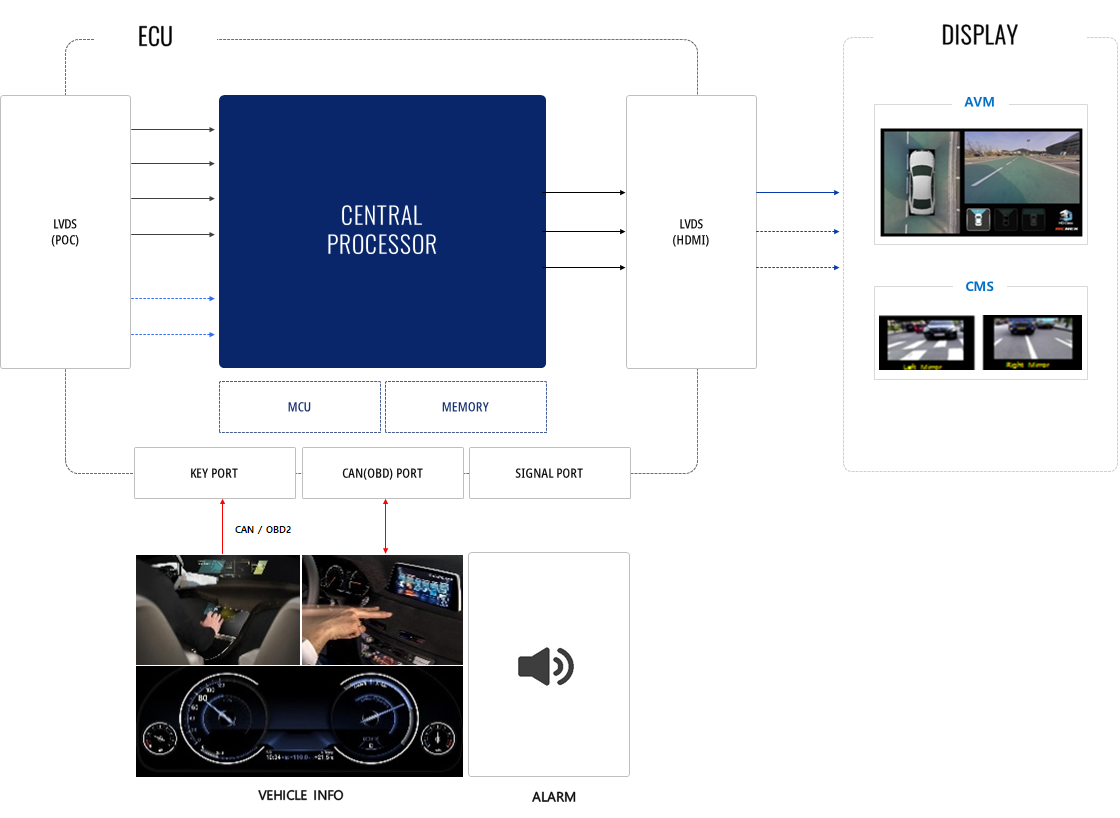

SVM·SRM·DVRS SYSTEM SVM(SURROUND VIEW MONITORING) + SRM(SMART ROOM MIRROR) SYSTEM

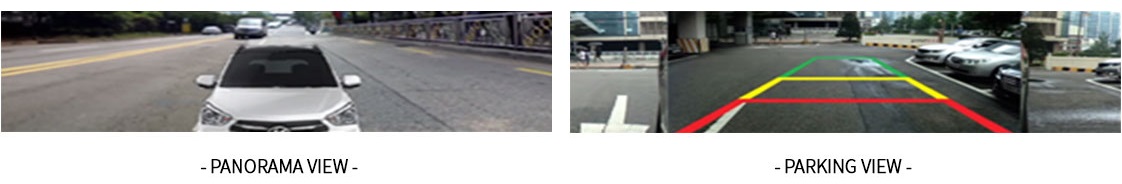

전 방위 영상 합성을 통한 주차 지원 서비스	사각 지역으로 부터의 물체 접근 감지 및 경고
주행 중 후방 및 측방 영상을 디스플레이 룸 미러로 확인	차선 이탈 경고 시스템

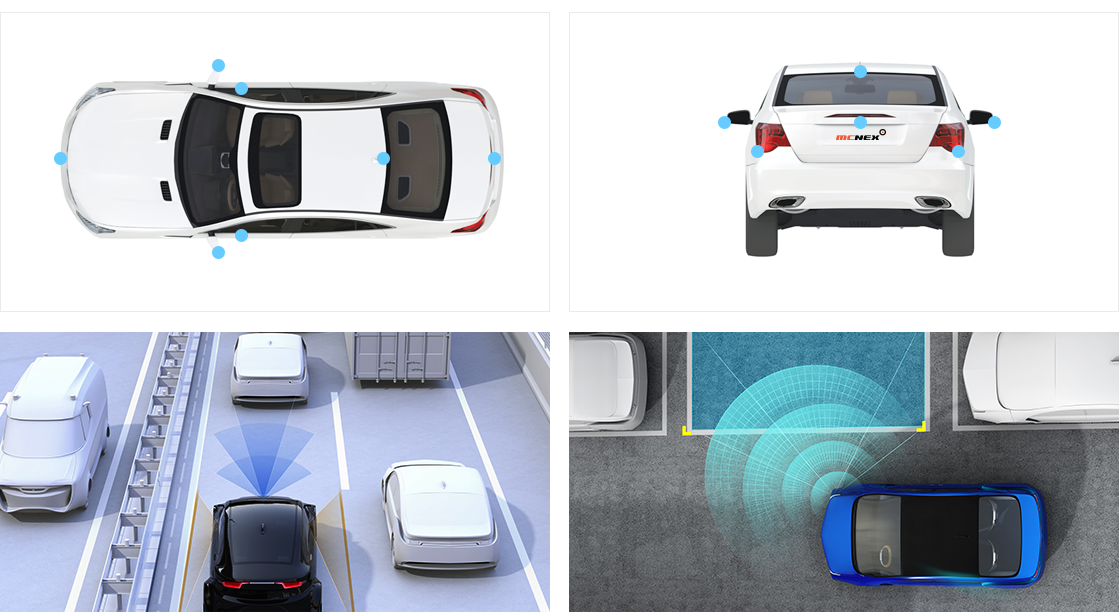

SURROUND VIEW MONITORING – UP TO 8 CAMERA SYSTEM


DIVISION	SPECIFICATION
Operation status	ACC ON, Start
Input Image Size	SVM : HD(1280 x 720), CMS : HD(1280 x 720) YUV Image
Frame Rate	30FPS
View Angle	190° / 80° (H)
Adjust mode	2D/3D Parking, Dynamic View
Display	2D/3D Parking, Dynamic View, Side view (Left / Right)
Object Detection	BSD, MOD

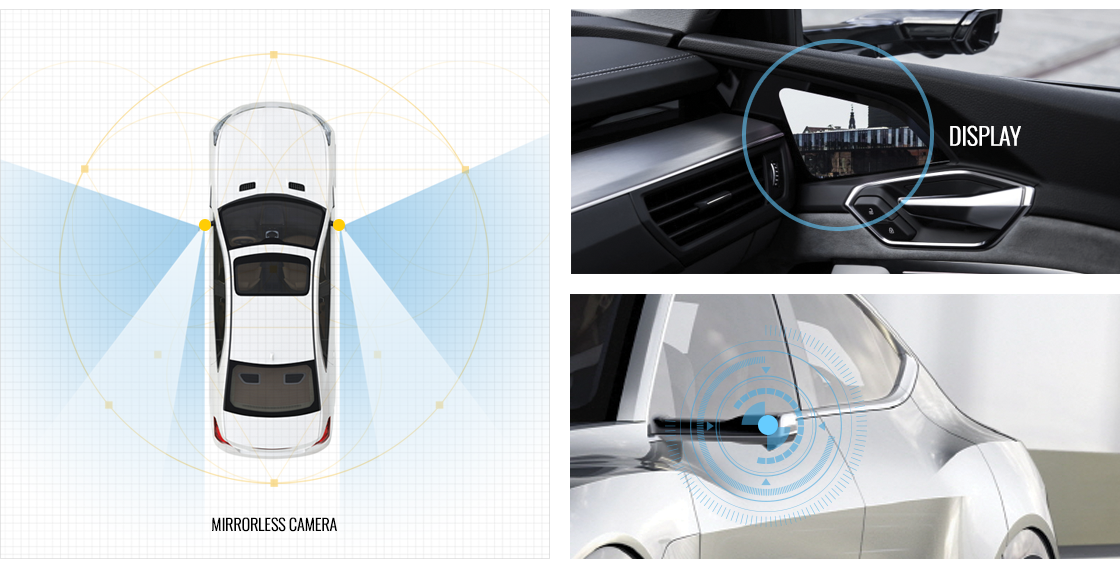

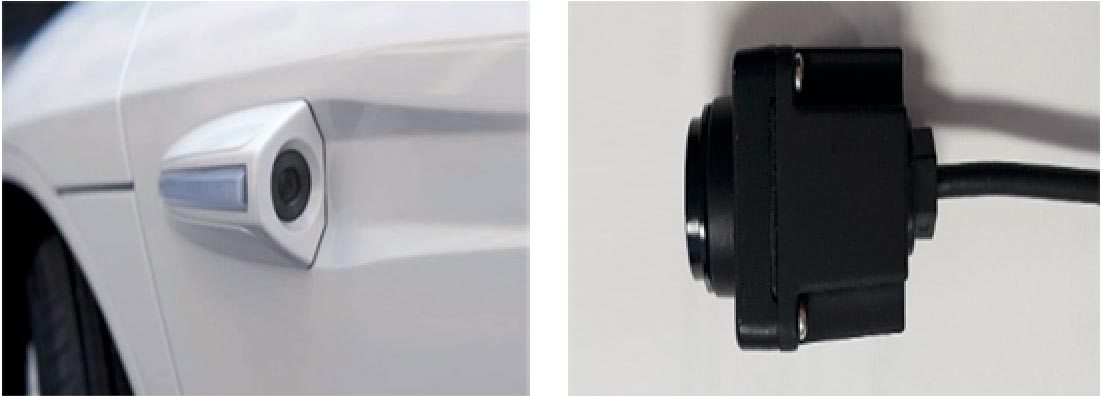

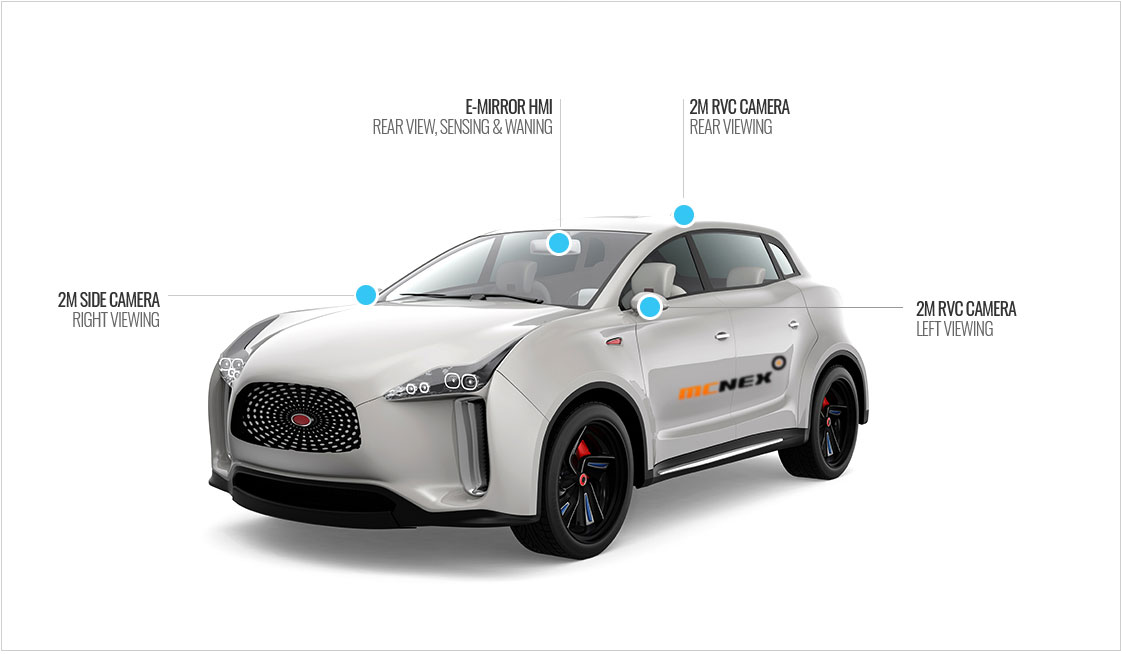

SMART ROOM MIRROR SYSTEM. SIDE MIRRORLESS CAMERA

Digital Side Mirror

Object Detection ( ~ 100m)

Display application OLED

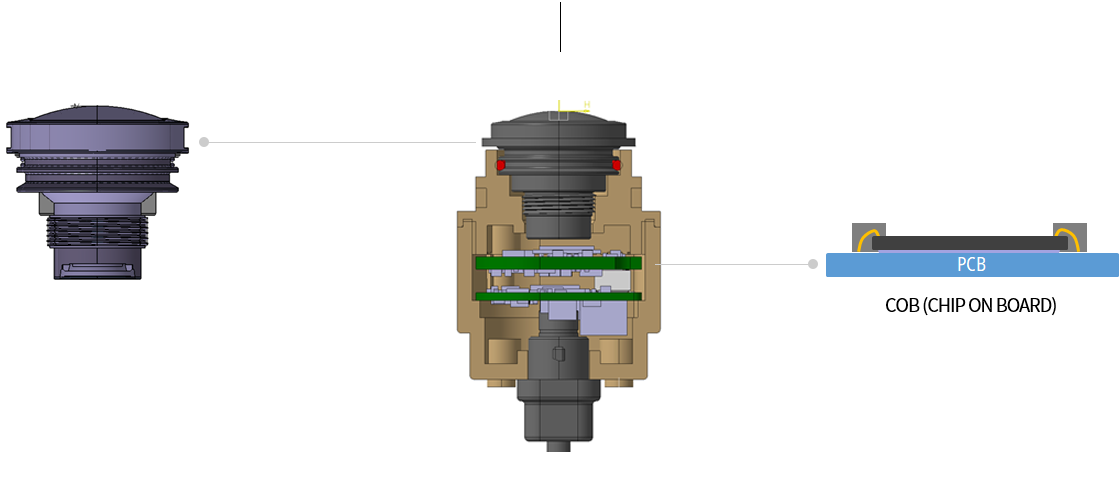

NEW PACKAGE SOLUTION


HIGH GAIN COB CAMERA FEATURE
Nano structure lens + COB HD class/FHD-class sensor	99.5% lens clarity (transmission rate)
Dynamic range increased 6% or more	Lens' water-repellent properties: improved 30% or more
Nano structure lens: low reflection/super water-repellent functionality	Satisfies automobile reliability standards abrasivity test
5 patent applications
