ADVANCED DRIVER ASSISTANCE SYSTEM BY MCNEX
- IN-CABIN SYSTEM
- DMS CAMERA
- GESTURE CAMERA
- EYE-TRACKING SYSTEM
- FINGERPRINT SYSTEM
- BUILT-IN CAM SYSTEM
- OUT-CABIN SYSTEM
- FRONT / REAR CAMARA
- 360DEGREE SVM CAMERA
- DSM CAMERA
- SRM SYSTEM
- BVM SYSTEM
- AUTONOMOUS DRIVING SYSTEM
- MFC / STEREO / TRI-FOCAL CAMERA
- MOD / NIGHT VISION CAMERA
- ULTRASONIC / FRONT CAMERA
- SVM SYSTEM / LIDAR SYSTEM
Shipping at least 4.2 million units of
mass-production models of autonomous
driving sensors annually
820 camera module models developed
Supplied for all of Hyundai/Kia’s models

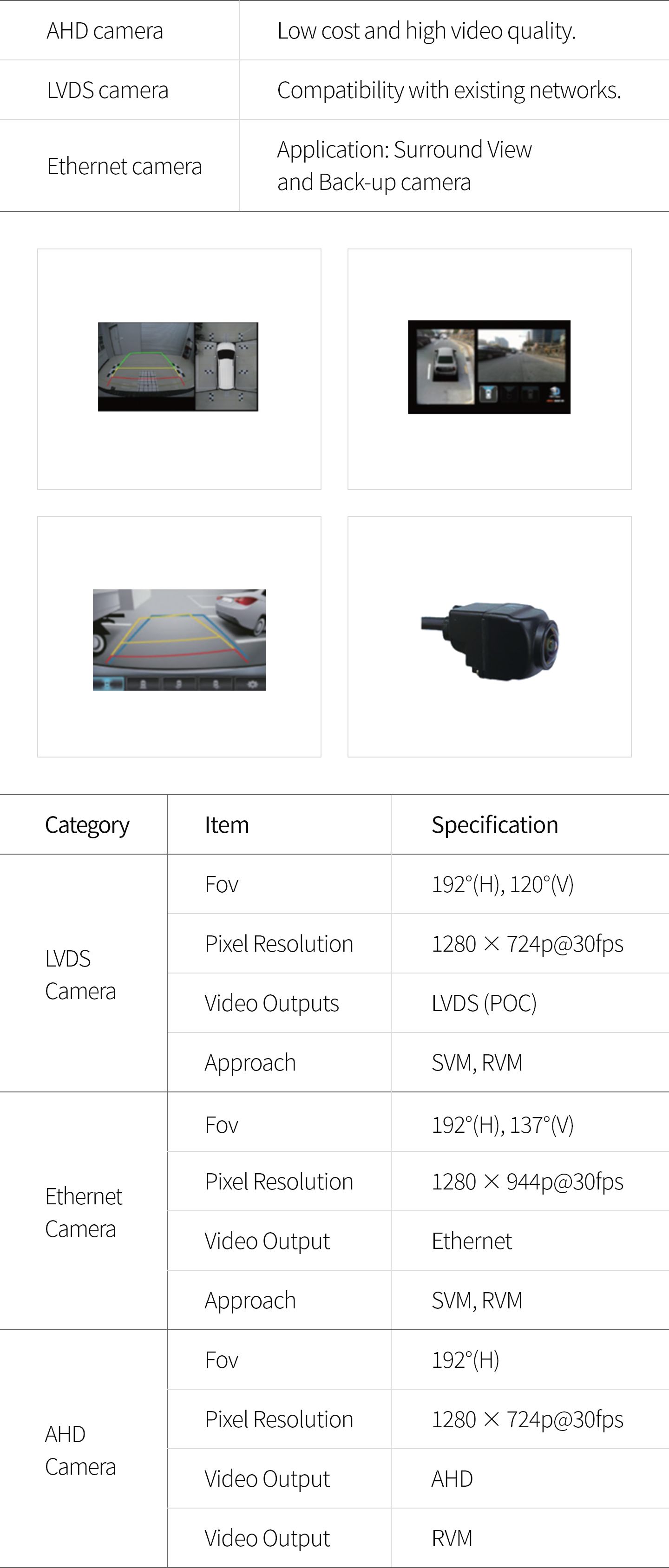

INTERFACE SOLUTION

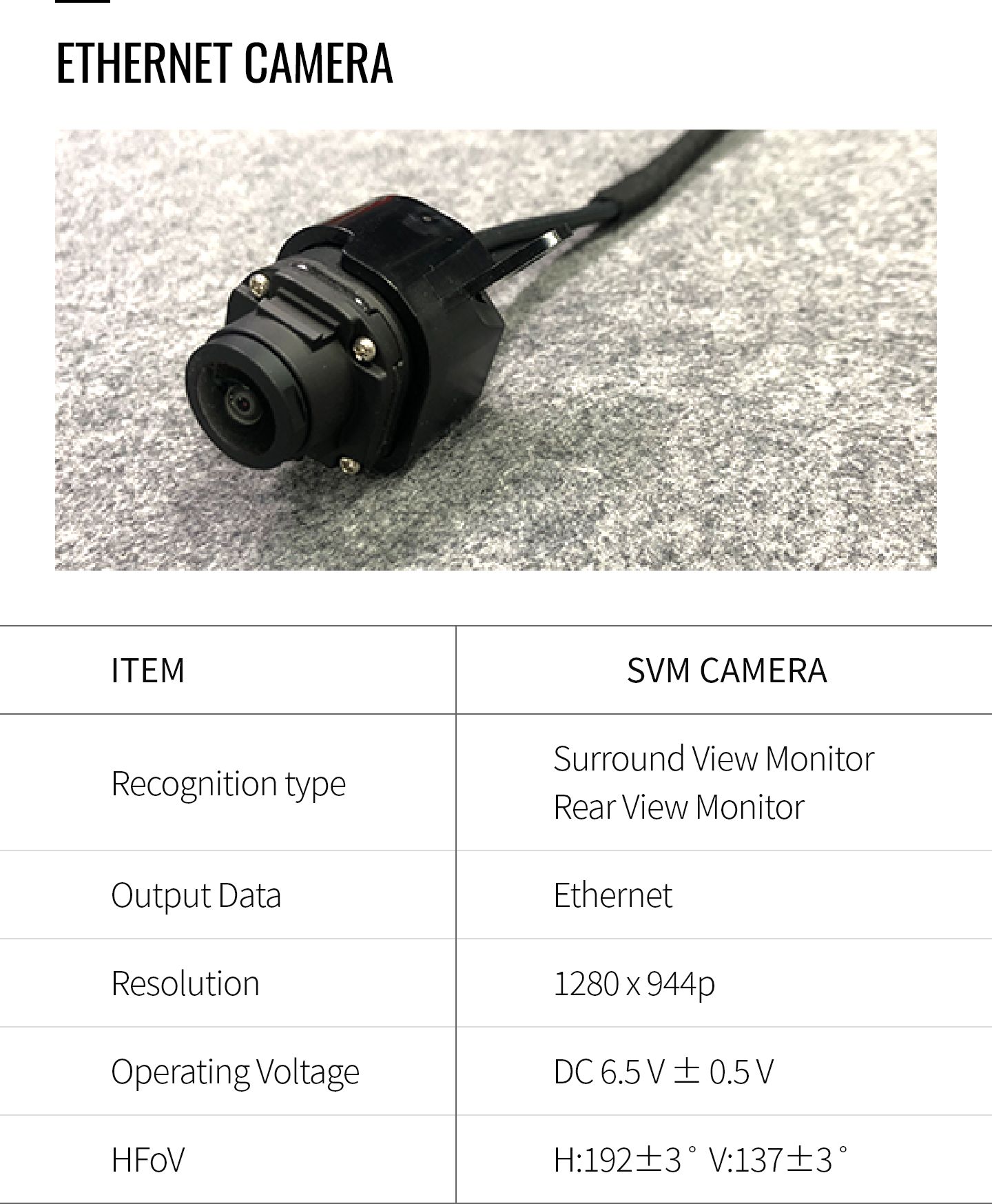

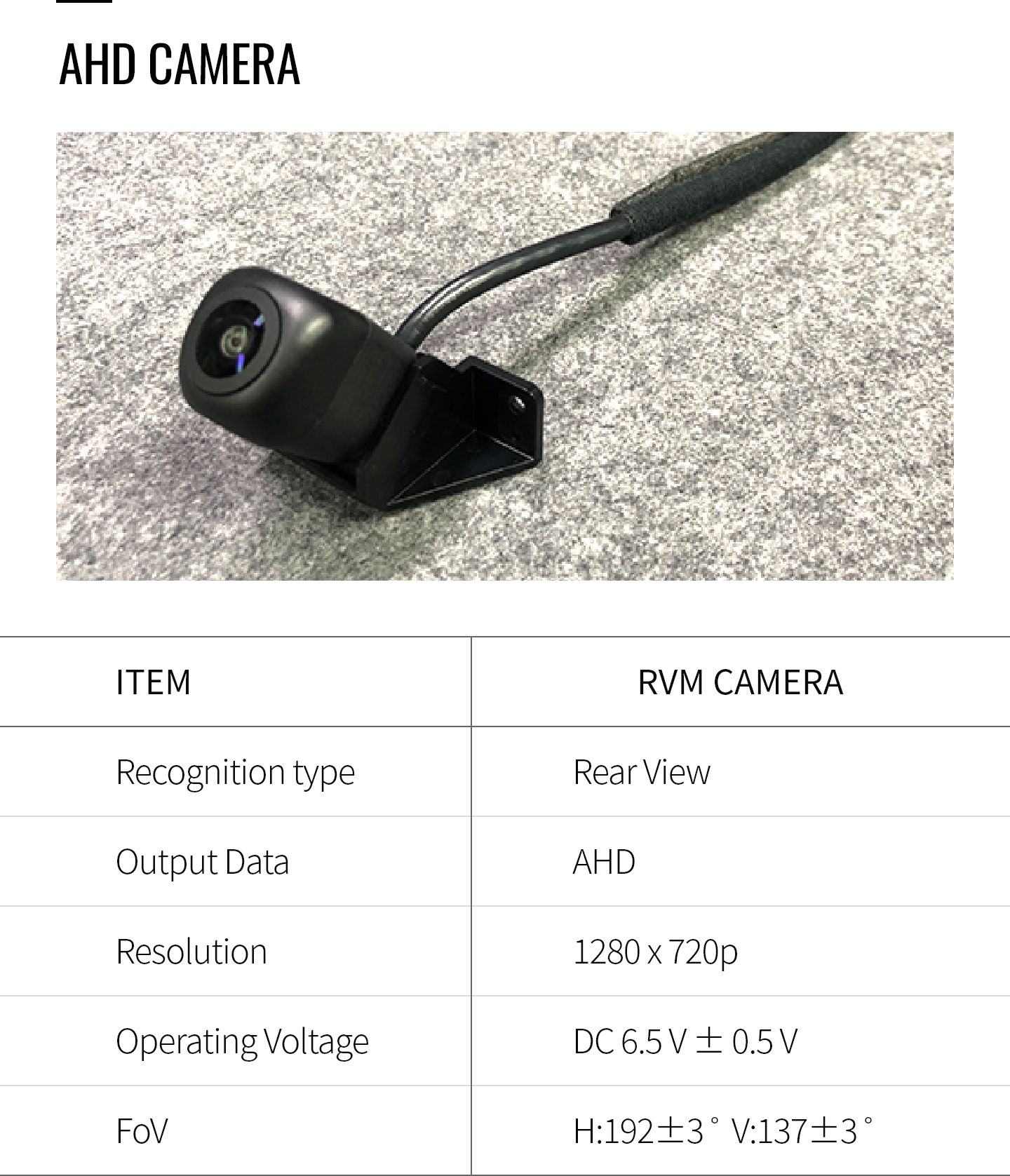

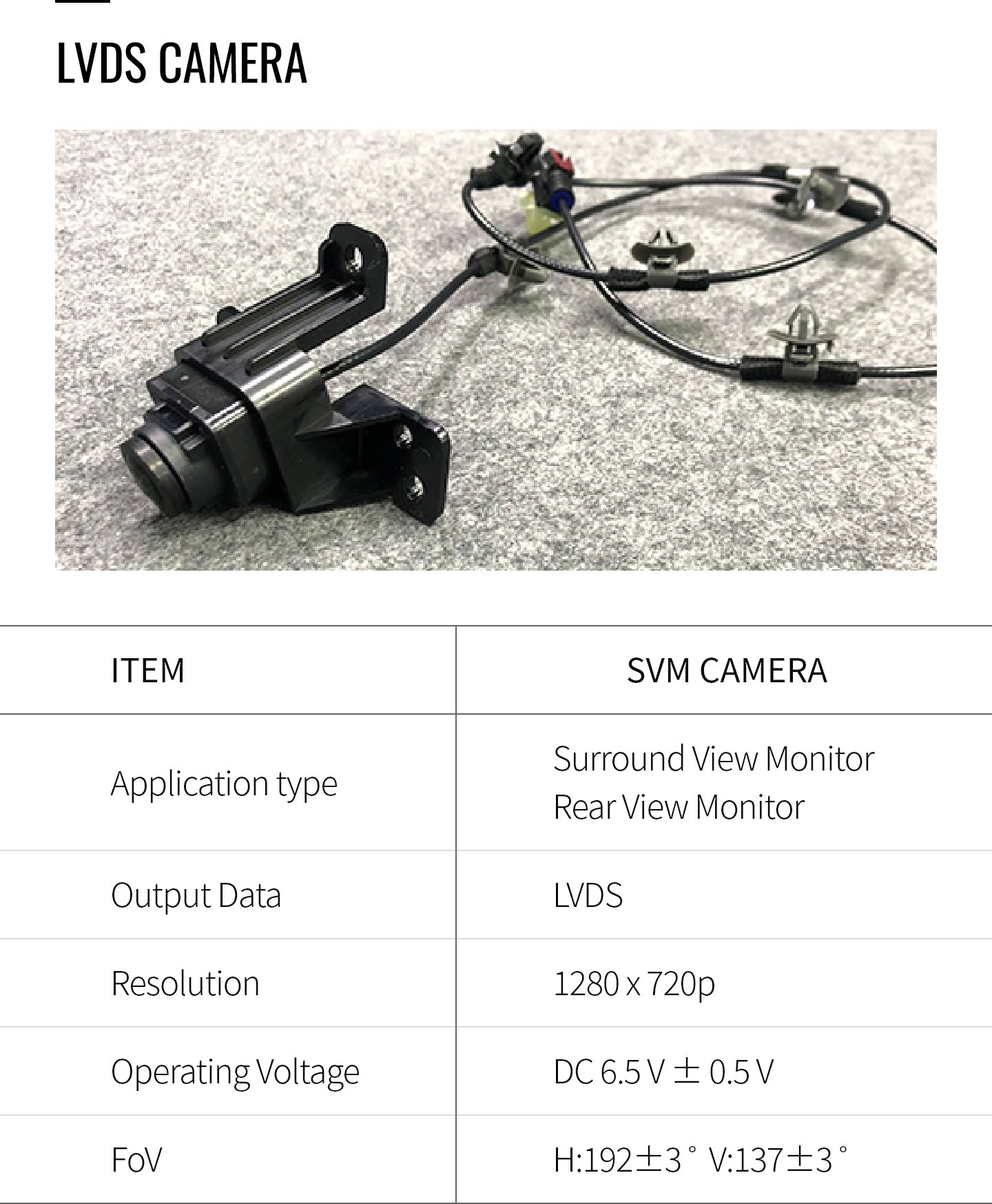

ETHERNET CAMERA | LVDS CAMERA | AHD CAMERA

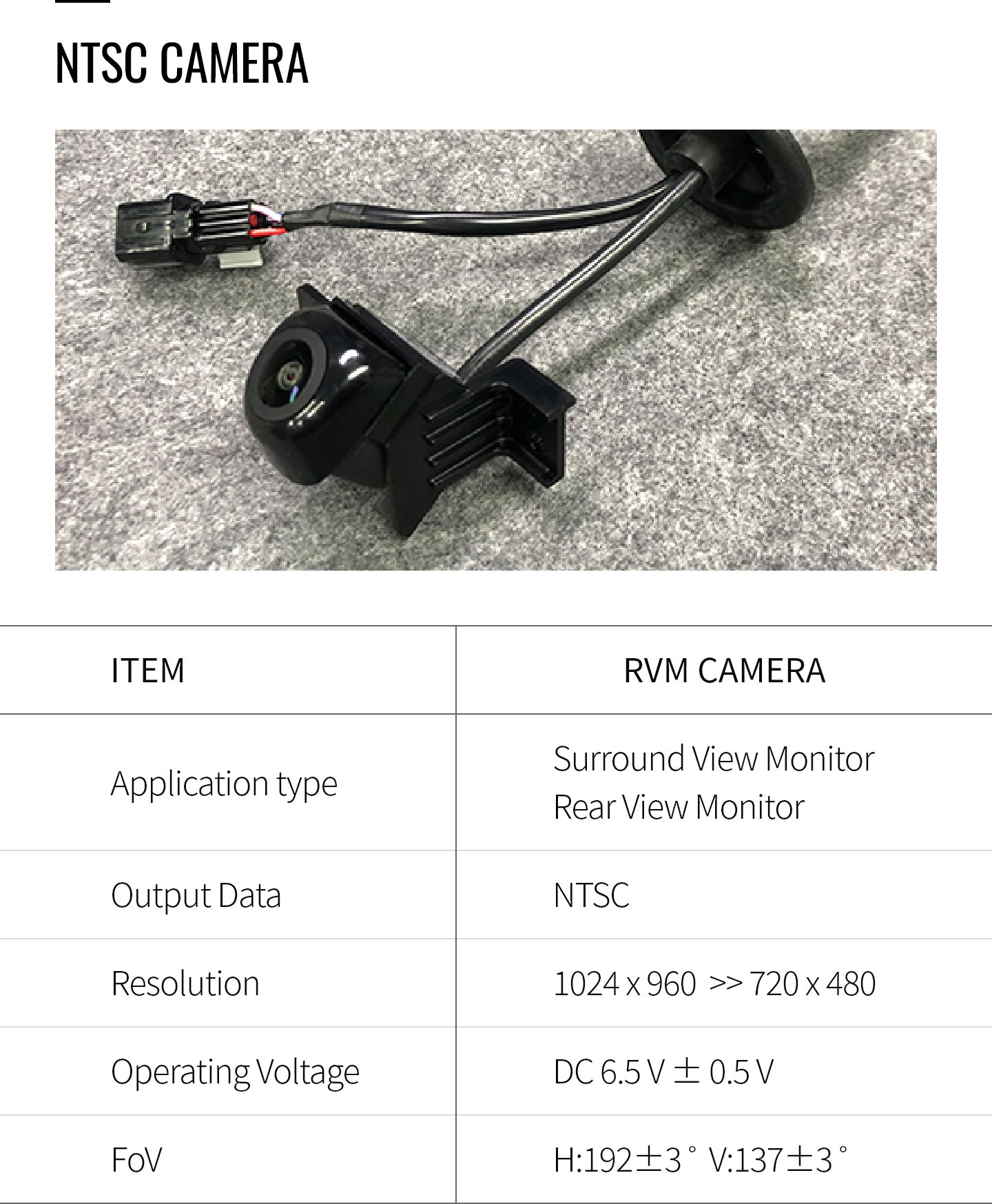

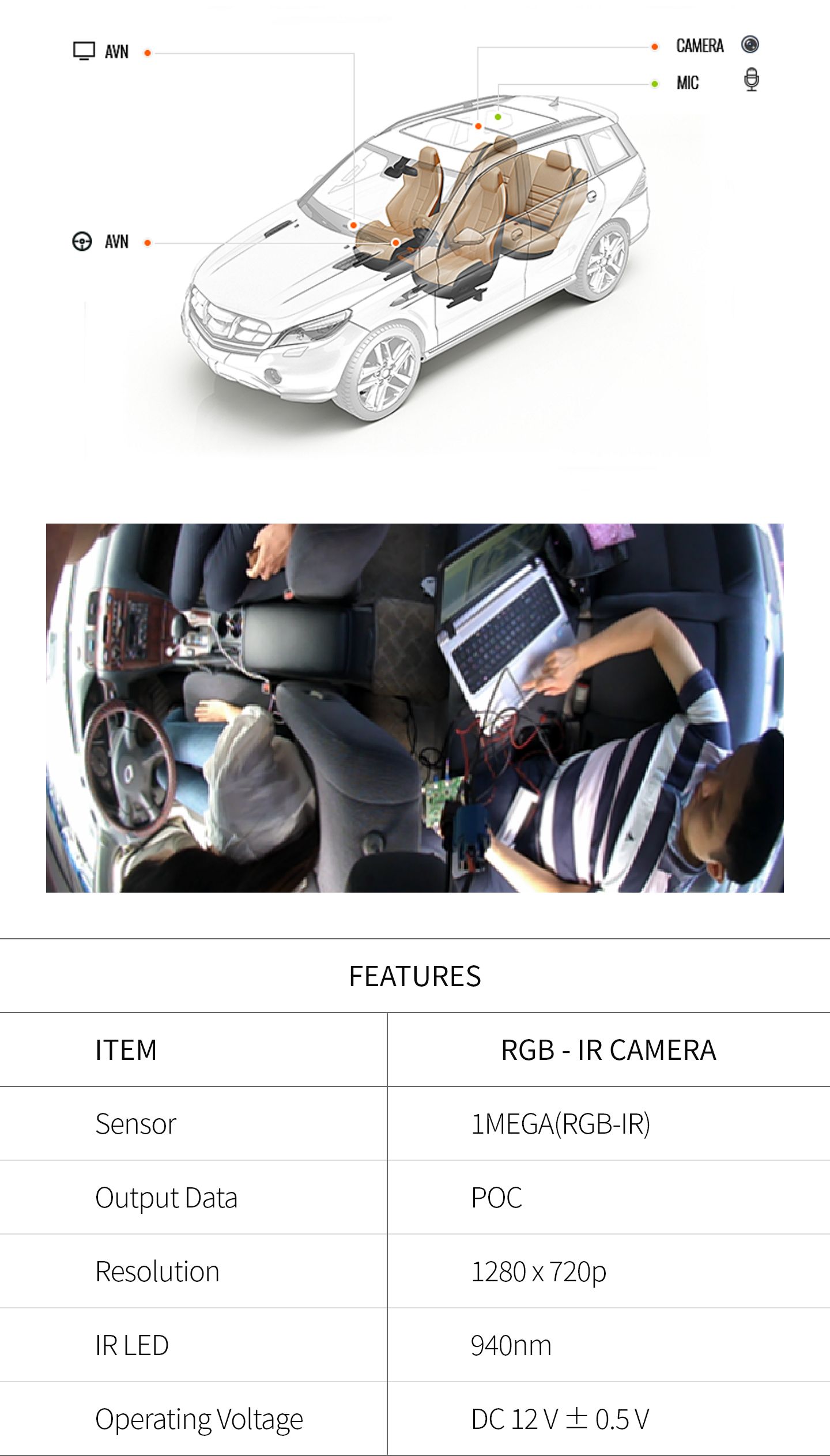

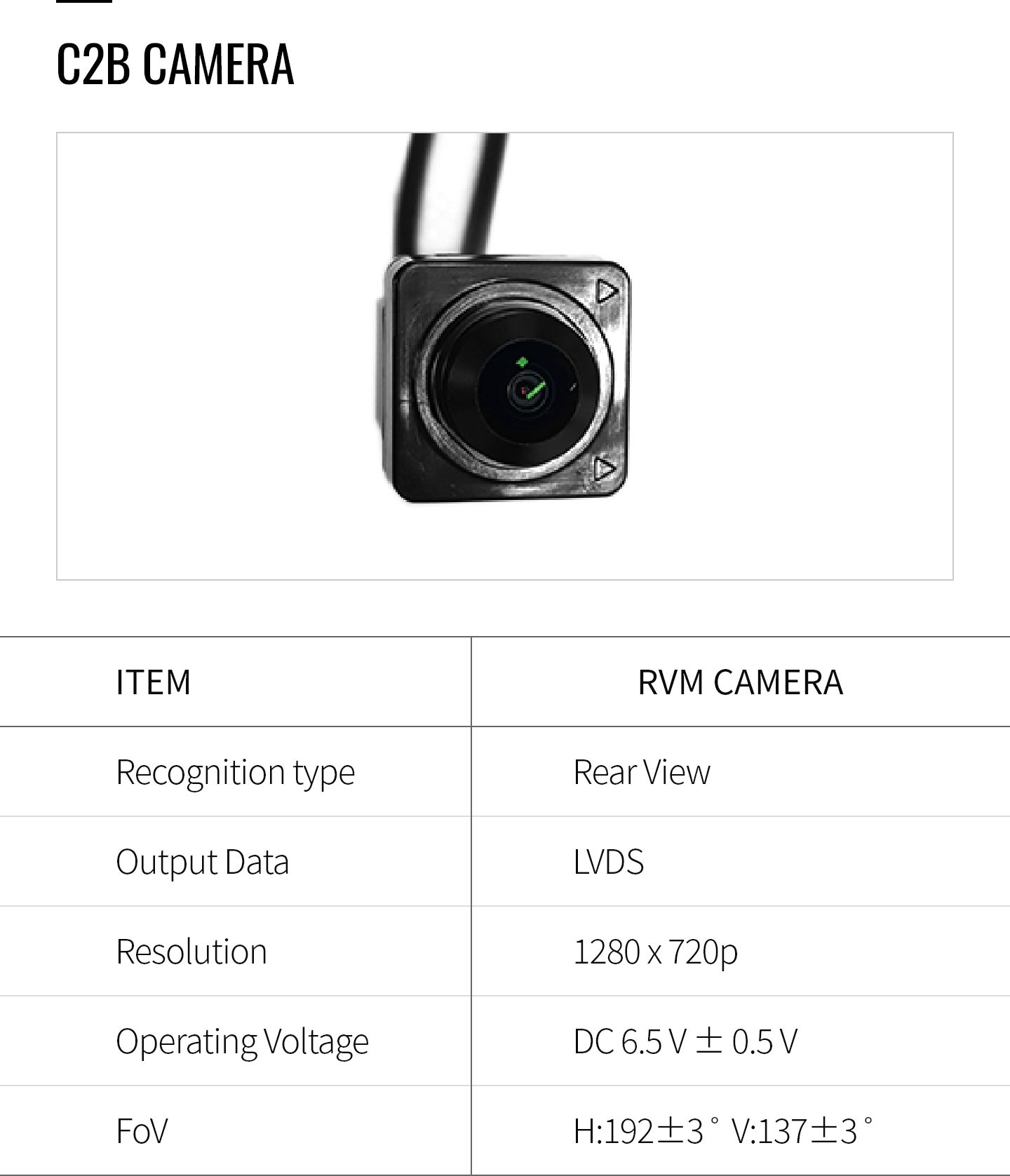

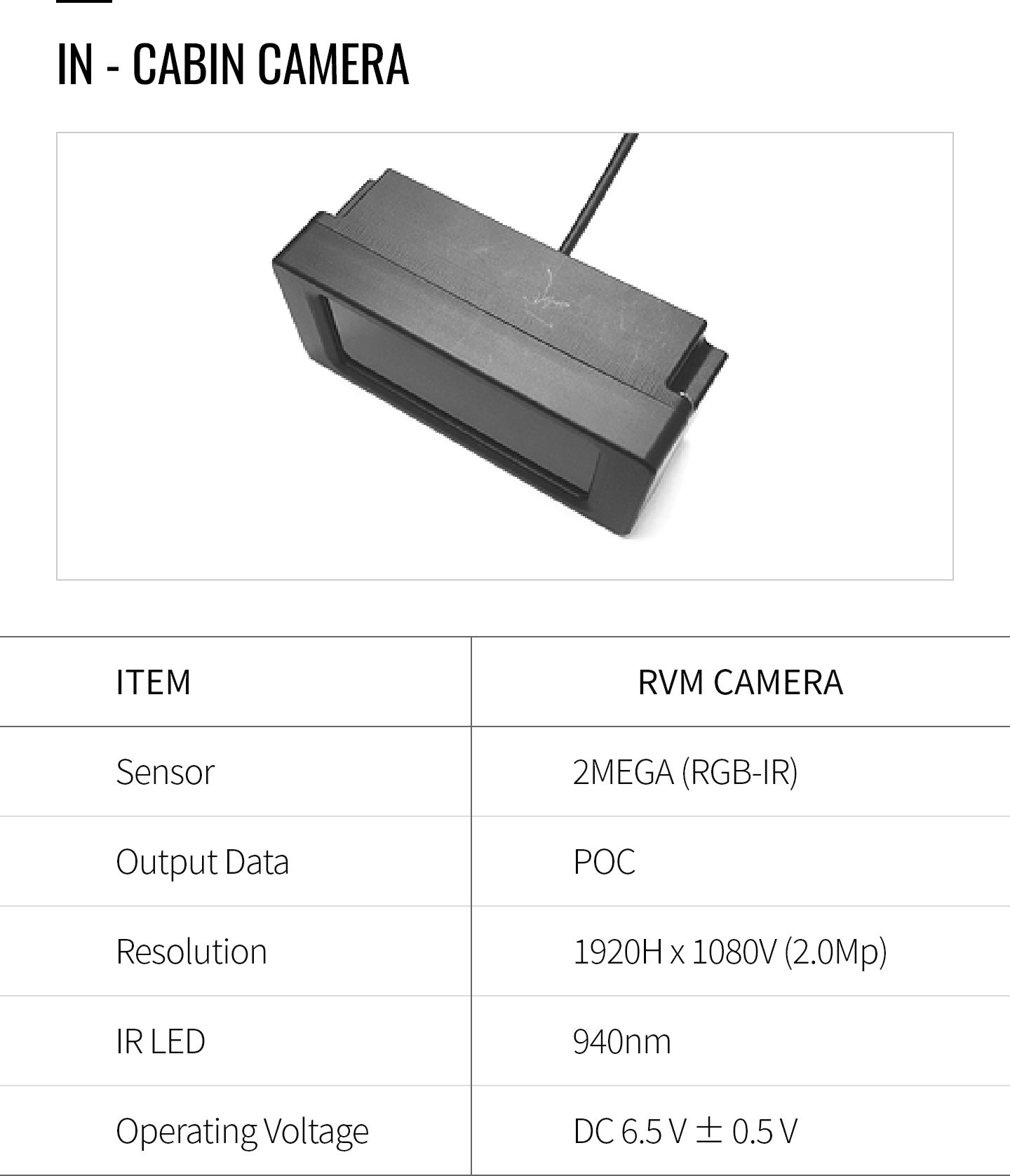

NTSC CAMERA | C2B CAMERA | IN-CABIN CAMERA
NTSC, AHD, LVDS ETHERNET
RGB, IR CAMERA
MCNEX
AUTOMOTIVE DRIVING-RELATED TECHNOLOGY
First development in Korea of a MEGA SVM/LVDS
camera, currently in mass productionApplications for all types of cameras
equipped in vehicles, such as front/rear cameras,
black boxes and alert systems.Obtaining next cash-cow technologies
through ADAS and advanced
automotive technologiesG90 / G80 / K9 SVM
SYSTEM INSTALLATION360° Around View x 4
Lane Departure Alert x 1

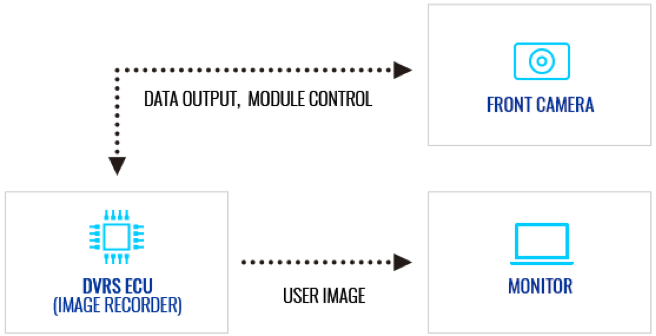

- Factory-installed Dashcam
- Saves images during driving
- Saves vehicle’s internal communication information
- Passes automobile environment reliability, EMI/EMC reliability
| ITEM | FRONT CAMERA |
|---|---|
| Resolution | 1920 x 1080p 30 FPS |
| Output Data | Single Output LVDS |
| Operating Voltage | DC 7.5 V ± 0.5 V |
| Operating Temperature | -30 ℃ ~ 105 ℃ |
| Optical Format | 1/2.9 inch |
| HFoV | 114 ˚ |

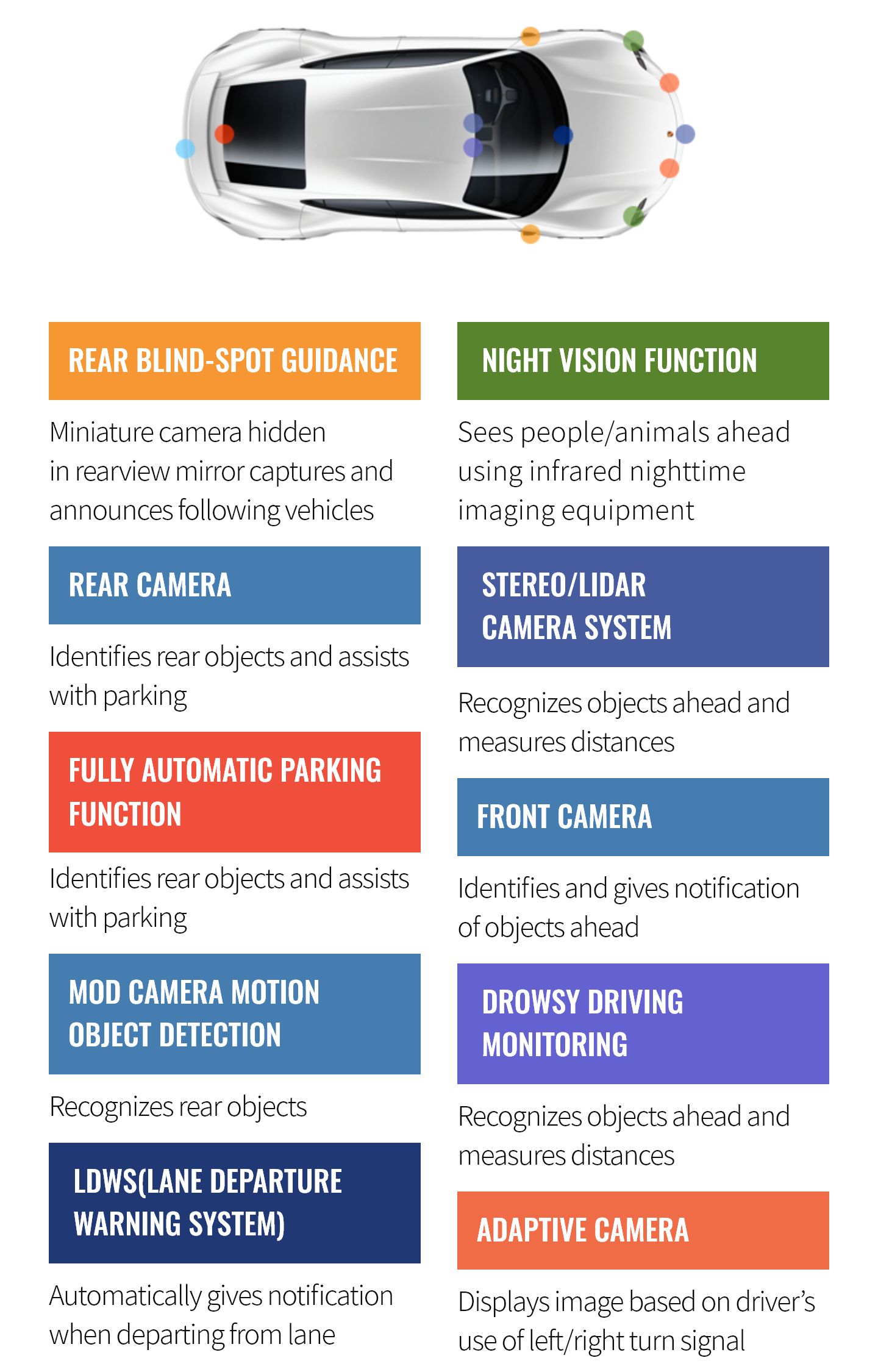

ASSISTANCE SYSTEM
Development of core electric vehicle solution
-
Smart “B” AI Camera
Multi-view, omnidirectional 360 SVM
monitoring Auto parking function -
CAN Communications
CameraECU & CAN
-
LDWS Camera
Lane departure waming
-
DSM Camera
Driver monitoring
-
LASER WELDING CAMERA
Extreme Waterproof Structure
-
HD AVM CAMERA
6Ch Around View Monitoring
-
BIOMETRICS
IRIS PATTERN / FINGERPRINT
-
TACTICAL WARFARE
VEHICLE CAMERAMilitary Vehicle
